Technical Parameters :
1. Input power: 7KW/15kw 2. Output frequency: 30--80KHZ; 4. Input voltage: two items 220v/50HZ/three-phase 380V
7. Cooling water requirements: 0.2Mpa, 4 ~ 5 L/min
8. Load duration: 80%
9. Water cooling method: circulating water cooling
Equipment model and melting capacity:
Device model | Gold, silver and copper Smelting volume | Steel and aluminum smelting volume |
TX-15 | Below 2KG | Below 0.5KG |
TX-25 | Below 4KG | Below 1KG |
2. Equipment characteristics:

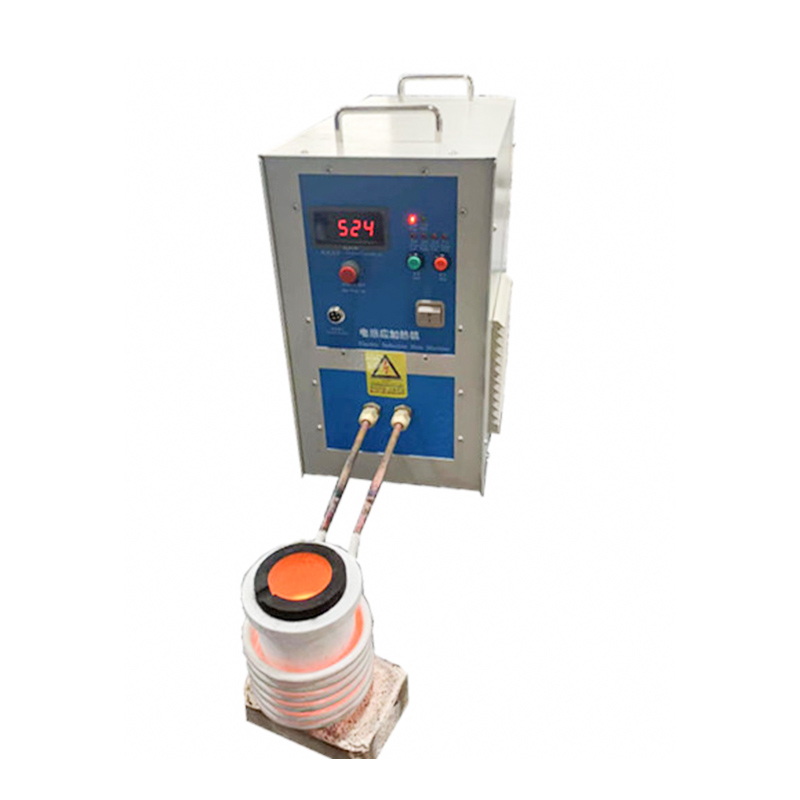

1. The smelting application of high-frequency electromagnetic induction heating equipment is used for smelting small amounts of gold, silver, platinum, steel and various metal materials; it is mainly used for smelting, sample preparation and analysis of metal materials, especially suitable for universities, research institutes, and enterprise technology One of the equipment commonly used in the center to analyze the properties of metal materials.
2. The equipment is small in size and light in weight (the overall appearance is the same size as a computer host);
3. Use IGBT power devices and our company’s unique converter control technology;
4. The operation is simple and can be learned in a few minutes;
The installation is simple, just connect electricity and water and it can be used, no need for special personnel to install;
6. Fast smelting speed, ultra-small volume, high efficiency and energy saving, environmentally friendly and pollution-free;
7. The crucible can be a graphite crucible, a ceramic crucible, or a high-purity graphite crucible.8. The amount of metal melted in a single time is 0.5kg-4KG, and the melting time in a single time is 5-10 minutes;
9. The furnace temperature can reach 1700 degrees.
