  • 20KW

  • 380V

  • 150-400KHZ

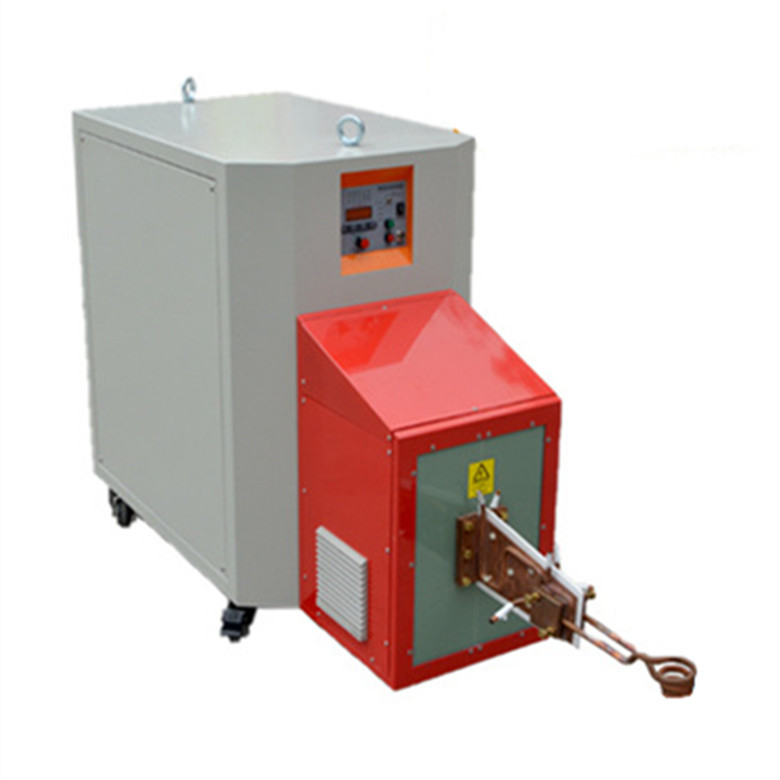

TXCG20-400K technical parameters

(1) Input voltage: three-phase 380V,

(2) Input power: 20KW

(3) Oscillation frequency: 150-400KHZ

(4) Cooling water requirements: 0.2MPA, 20L/min

(5) Temporary load rate: 100%

(6) With time control function: three periods of heating, heat preservation and cooling 0.1--99S

(7) Waterway: one in, one out

Main applications and features:

1) The gear shaft tool edge is quenched and the quenching depth is less than 1 mm

2) Drip melting

3) Continuous quenching of saw blade

3. Performance advantages:

1) Original core power components and chips, soft switching control technology, Xinkangda transformer core, Japanese or American potentiometers, Taiwanese buttons, high-quality air pipes, etc. to ensure stable equipment quality and equipment life of more than 5 years.

2) Instant and frequent startup

3) It has multiple protection circuits such as overcurrent, overvoltage, water shortage, overheating, frequency discomfort, etc.

4) It has power, current and frequency display, which is intuitive and easier to design the induction coil.

5) The whole machine operates stably and the failure rate is extremely low

Equipment installation requirements:

1) Input power cord: 20mm2 soft copper wire, 6mm2 soft copper wire;

2) Cooling water requirements: clean water, no impurities, not likely to cause pipe blockage or structure, inlet water temperature 25-36°C';

3) For this model, it is recommended to use an industrial chiller or cooling tower

ZhenJiang TianXiang Precision Blectric Machinery Co.,Ltd
The company has been committed to the development, production and sales of solid-state medium frequency, high frequency and ultra-high frequency induction heating equipment. There are more than 100 equipment specifications currently, and the products cover medium frequency (1~20KHz), high frequency (30~80KHz), Full series of ultra-high frequency (0.1~1.1MHz), super audio frequency (10~60KHz), and power 3KW~600KW.
The main products include: high-frequency induction heating equipment, ultra-high frequency induction heating equipment, medium-frequency induction heating equipment, high-frequency welding machines, high-frequency quenching machines, smelting furnaces, experimental melting furnaces, copper melting furnaces, quenching machine tools, etc.
