  • 10KW

  • Three-phase 380V

  • 100-300KHZ

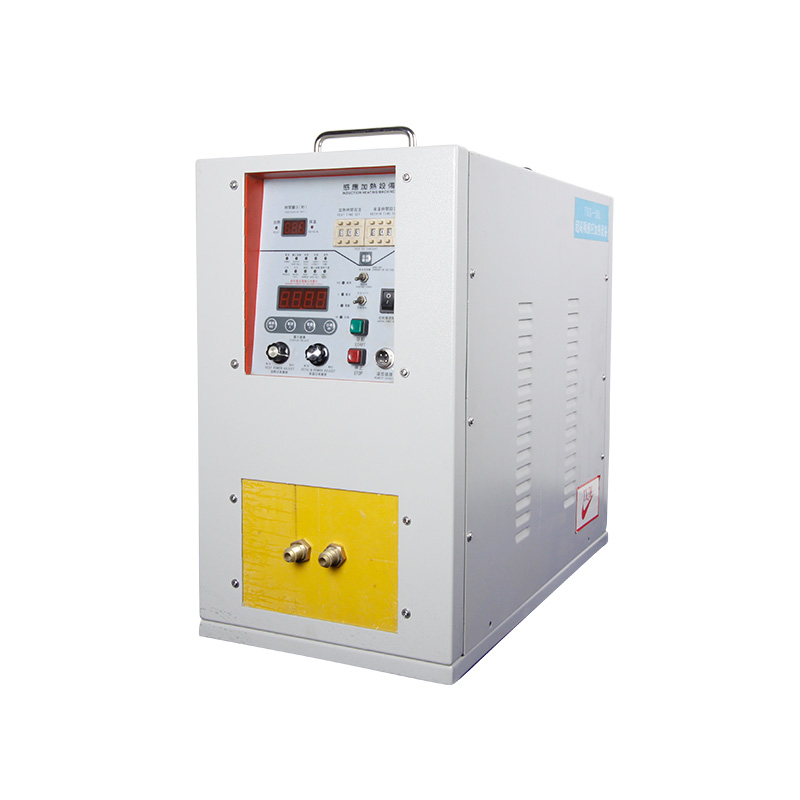

TxCG-10 series high frequency induction heating equipment

The main technical parameters:1. Input power: 10KW 2. Input voltage: three-phase 380V, 50 or 60HZ 3. Oscillation frequency: 100-300KHZ; 4. Cooling water requirement: 0.2Mpa, 5 L/min 5. Load duration: 100% 6. Automatically controlled timing function: heating time, holding time: 0.1-99.9 seconds 7. Weight and volume


Volume(CM) length×width×height




main feature:

1. The frequency reaches 300KHZ, and the quenching depth can be controlled below 1MM; 2. Using IGBT power devices and our company’s unique converter control technology, the equipment has higher reliability and low maintenance costs; 3. Using conventional IGBT devices, the equipment Working frequency reaches 300KHZ, advanced control technology; 4. 100% load duration, 24-hour operation; 5. With constant current/constant power control function, higher heating efficiency; 6. Full display of output power, frequency, and current; 7. Easy to install, just connect electricity and water to use, no need for special personnel to install; 8. Miniaturization, saving equipment installation space, and easy maintenance; 9. Automatic control type can adjust the power and time of heating and heat preservation processes, which is helpful to improve Repeatability of heating quality, simplifying worker operations


ZhenJiang TianXiang Precision Blectric Machinery Co.,Ltd
The company has been committed to the development, production and sales of solid-state medium frequency, high frequency and ultra-high frequency induction heating equipment. There are more than 100 equipment specifications currently, and the products cover medium frequency (1~20KHz), high frequency (30~80KHz), Full series of ultra-high frequency (0.1~1.1MHz), super audio frequency (10~60KHz), and power 3KW~600KW.
The main products include: high-frequency induction heating equipment, ultra-high frequency induction heating equipment, medium-frequency induction heating equipment, high-frequency welding machines, high-frequency quenching machines, smelting furnaces, experimental melting furnaces, copper melting furnaces, quenching machine tools, etc.
