Electric tip-over aluminum melting furnace

Electric tipping medium frequency melting furnace

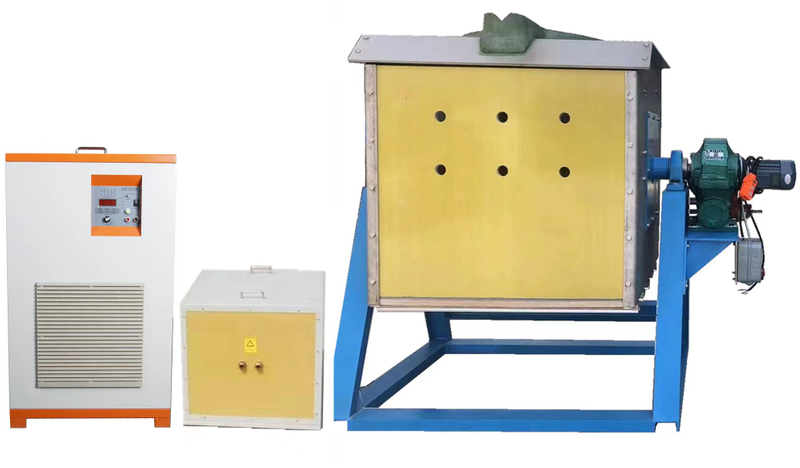

1. Main components: (1) TXZ-15~TXZ-160 intermediate frequency power supply (2) Compensation capacitor box (3) Electric tipping melting furnace 2. Oscillation frequency: 2-20KHZ 3. Suitable for non-ferrous metal materials from 3KG to 300KG And a small amount of non-metallic materials smelting

Smelting principle: The power supply adopts all-solid-state Siemens IGBT frequency conversion module technology, and adopts the principle of magnetic field induction eddy current heating. It uses current to pass through the coil to generate a magnetic field, and heats the metal through the electromagnetic eddy current induction generated by the metal itself. The metal is instantly heated through the crucible container and begins to melt. The metal is melted into liquid, and then smelted, refined, purified, and then cast and molded using various molds. Compared with coke furnaces, gas furnaces, oil furnaces, and ordinary resistance furnaces, the melting speed is faster, low energy consumption, environmental protection, and volume Small and easy to operate.

 main feature:,

1. The metal is heated up instantly through the crucible container and begins to melt, and then processes such as smelting, refining, purification, casting and pouring are carried out.

2. The main metals targeted are: platinum, gold, silver, copper, steel, aluminum, activated carbon gold ash, gold sand, electrolytic copper, gold and silver powder, tin ash, tin slag, etc.

3. The amount of metal melted in a single time: 1g~100kg, the melting time in a single time: 5 minutes~30 minutes, the maximum furnace temperature is 1000-1600 degrees

4. It is suitable for both factory production and small family workshops, and is also suitable for small-volume sample melting experiments in schools/research institutes;

5. Fast heating: the fastest heating speed, the heating efficiency reaches more than 95% (the speed can be adjusted and controlled)

6. Energy saving and environmental protection: save electricity and energy, replace oxyacetylene flame, coke furnace, gas furnace, oil furnace, thyristor intermediate frequency.

7. Easy installation: connect the power supply, the induction coil and the inlet and outlet pipes are ready for use; small size, light weight, very convenient to use.

8. Easy to operate: It can be learned in a few minutes. It is easy to install. Just connect the power supply, water in and out, and it is ready to work. No professional installation is required.

9. Quick start: heating can be started after turning on water and electricity, with 24-hour uninterrupted melting capability.

10. The machine is safe and reliable: It is equipped with overvoltage, overcurrent, overheating, water shortage and other alarm indication protection, which greatly improves the manufacturability of the equipment.

11. It has the electromagnetic stirring function to make the molten material more uniform, which is beneficial to dross and reduces impurities, making the melt or castings brighter and free of shrinkage and porosity.

Main smelting furnace specifications and heating capacity:

The maximum heating capacity of each melting furnace is listed in the following table. When the furnace is cold, the melting time per furnace is 50--60 minutes. When the furnace is hot, the melting time per furnace is 20--30 minutes.

Medium frequency melting furnaceMain parameters of power supply
