Gold melting furnace/Copper melting furnace/Silver melting furnace/Aluminum melting furnace

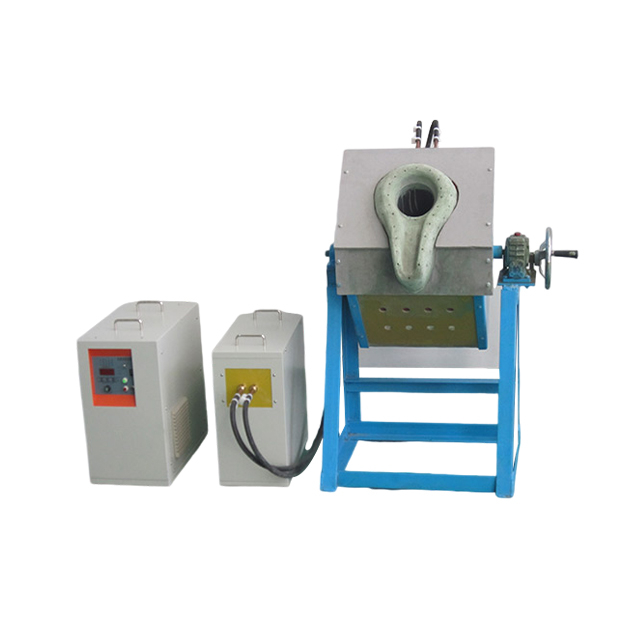

Main components: (1) TXZ-15~TXZ-160 medium frequency power supply (2) Compensation capacitor box (3) Tip-down melting furnace/fixed melting furnace 2. Oscillation frequency: 2-20KHZ 3. Suitable for smelting from 3KG to 300KG
Smelting principle of the intermediate frequency smelting furnace: The power supply adopts all-solid-state Siemens IGBT frequency conversion module technology, and adopts the principle of magnetic field induction eddy current heating. It uses current to pass through the coil to generate a magnetic field, and heats the metal through the electromagnetic eddy current induction generated by the metal itself. The metal is instantly heated through the crucible container. Start melting, melt the metal into liquid, and then carry out processes such as smelting, refining, purifying, and then casting and molding using various molds.
Features of medium frequency melting furnace:
(1) Medium frequency melting furnace is used for melting and heating of steel, stainless steel, copper, aluminum, gold, silver and other metal materials; the melting capacity ranges from 3KG to 300KG.
(2) Medium frequency melting has a good electromagnetic stirring effect, which is beneficial to the uniform temperature and structure of the melted metal, is beneficial to dross, and reduces impurities;
(3) The frequency range is wide, from 1KHZ to 20KHZ. The induction coil and matching compensation capacitor can be designed comprehensively considering the melting volume, electromagnetic stirring effect, heating efficiency, noise during operation and other factors to determine the output frequency;
(4) Compared with silicon controlled medium frequency, it saves at least 20% more energy;
(5) The equipment is small in size and light in weight, and its melting capacity ranges from a few kilograms to hundreds of kilograms. It has a wide range of options and is suitable for both factory production and small-volume smelting in schools and research institutes.
Main smelting furnace specifications and heating capacity:
The heating capacity of each melting furnace is listed in the following table. When the furnace is cold, the melting time per furnace is 50--60 minutes. When the furnace is hot, the melting time per furnace is 20--30 minutes.
Specification | Steel, iron | gold, silver, copper, tin | Aluminum, aluminum alloy | Input voltage | input power |
TXZ-15 smelting furnace | 2kg | 10kg | 3kg | 380v | 15kw |
TXZ-25 smelting furnace | 4kg | 20kg | 6kg | 380v | 25kw |
TXZ-35 smelting furnace | 8kg | 40kg | 10kg | 380v | 35kw |
TXZ-45 smelting furnace | 12kg | 50kg | 20kg | 380v | 45kw |
TXZ-70 smelting furnace | 25kg | 100kg | 30kg | 380v | 70kw |
TXZ-90 smelting furnace | 40kg | 120kg | 40kg | 380v | 90kw |
TXZ-110 melting furnace | 50kg | 150kg | 50kg | 380v | 110kw |
TXZ-160 melting furnace | 70kg | 250kg | 100kg | 380v | 160kw |
Main parameters of medium frequency melting furnace power supply:
model | TXZ—15 | TXZ—25 | TXZ-35 | TXZ—45 | TXZ—70 | TXZ—90 | TXZ—110 | TXZ—160 |
input power | 15KVA | 25KVA | 35KVA | 45KVA | 70KVA | 90KVA | 110KVA | 160KVA |
Output current | 3～22A | 5～45A | 10～70A | 15～95A | 20～130A | 25～170A | 30～200A | 30～250A |
The output voltage | 70～520V | 70～550V | 70～550V | 70～550V | 70～550V | 70～550V | 70～550V | 70～550V |
Input power | Three-phase 380V ±20% 50 or 60HZ | |||||||
Output oscillation frequency | 1KHZ～20KHZ depends on the customer’s workpiece heating requirements | |||||||
load duration | 100% 24 hours continuously working | |||||||
Power supply weight | 28KG | 30KG | 40KG | 50KG | 60KG | 80KG | 100KG | 122KG |
Power supply volume (width × height × length) CM | 27×45×46 | 27×45×52 | 35×55×65 | 50×88×75 | 50×88×75 | |||
Medium frequency complete set of cooling water requirements | ≥0.2Mpa ≥6L/Min | ≥0.3Mpa ≥10L/Min | ≥0.3Mpa ≥20L/Min | ≥0.3Mpa ≥25L/Min | ||||
Medium frequency power supply cooling water requirements | ≥0.2Mpa ≥3L/Min | ≥0.2Mpa ≥4L/Min | ≥0.2Mpa ≥6L/Min | ≥0.2Mpa ≥6L/Min | ||||
Power supply waterway | One has water intrusion; One out of water | One has water intrusion; three out of water | ||||||
