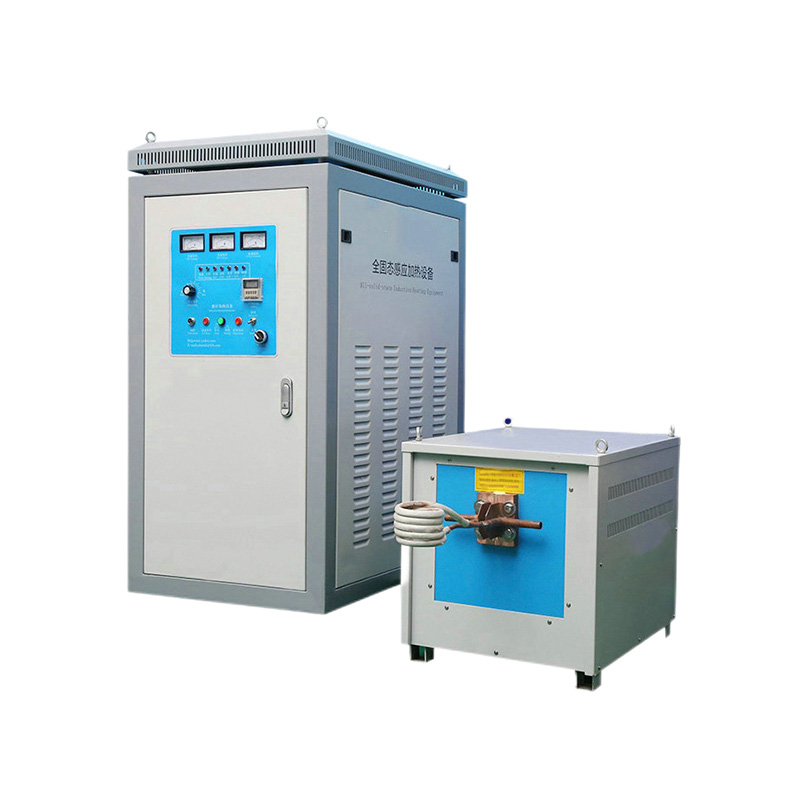

super audioTX-120 technical parameters
1. Output power: 120KW 2. Working frequency: 10-40KHZ
2. Maximum input current: 100A
3. Input voltage: three-phase 380V, 50 or 60HZ 5. Working voltage range: 342V-430V
6. Load duration: 100% 7. Cooling water requirements: 0.1Mpa, 68L/min water temperature <40 ºC 8. Host volume: volume length x width x height 930*550*1190mm Weight 140kg
Extension volume volume length x width x height 560*440*530mm Weight 96kg
main feature: 1. IGBT inverter technology and series resonant circuit.2. Phase locking technology and soft switching technology ensure high reliability and realize automatic frequency tracking.3. The power factor is not less than 0.95. 4. Designed with 100% load duration, it can work continuously and can be turned on or off immediately.5. The protection circuit has complete functions and high reliability, with current, voltage and frequency display. 6. Low energy consumption, with a conversion efficiency of over 97.5%, saving 15%-30% energy compared with thyristor medium frequency induction heating equipment.7. Environmentally friendly, clean, and pollution-free, improving the working environment of workers. 8. Simple and safe to operate, with fault alarm functions such as water shortage, overcurrent, and overvoltage; 9. Replaces oxyacetylene flames, coke furnaces, salt bath furnaces, and gas Traditional heating methods such as furnaces and oil furnaces
The main purpose:
1. Annealing in various stainless steel industries.Such as annealing, stretching, annealing and curling of stainless steel basins and cans, and annealing of sinks, stainless steel pipes, stainless steel tableware, stainless steel cups, etc.;
2. Annealing of various other metal workpieces.Such as golf heads, clubs, copper locks, hardware and copper accessories, kitchen knife handles, blades, aluminum pots, aluminum barrels, aluminum radiators and various aluminum products.
3. Various hardware tools and hand tools.Such as quenching of pliers, wrenches, hammers, axes, screwdrivers, scissors (garden shears), etc.;
4. Various automobile and motorcycle accessories.Such as quenching of crankshafts, connecting rods, piston pins, sprockets, aluminum wheels, valves, rocker shafts, transmission half shafts, small shafts, pull forks, etc.;
5. Various power tools.Such as gears and shafts;
6. Machine tool industry.Such as quenching of machine tool bed surfaces, machine tool guide rails, etc.;
7. Various hardware metal parts and machined parts.Such as quenching of shafts, gears (sprockets), cams, chucks, clamps, etc.;
8. Hardware mold industry.Such as quenching of small molds, mold accessories, mold inner holes, etc.;
9. Through-heat forming of rods, square materials, blocks, etc. with a diameter of Φ10-Φ30
